Ultrasonic humidifiers, also called piezo mist generators or atomizers, have become one of the most popular and efficient ways to add moisture to the air. Whether you are fighting dry winter air at home, optimizing a greenhouse for maximum crop yield, or building a smart fogponics system, these devices deliver fine, cool mist with remarkable precision and low energy use.
In this in-depth guide, we will break down exactly how ultrasonic mist generation works, explore real-world applications, especially in agriculture, highlight the benefits, and discuss critical safety considerations like bacterial risks and proper maintenance. We will also show why advanced DIY smart circuits, such as a 4-channel ESP32-controlled piezo driver with individual frequency tuning, outperform basic store-bought units.
The Science Behind Ultrasonic Mist Generation: How Piezo Discs Create Fog
At the heart of every ultrasonic humidifier is a piezoelectric ceramic disc, typically 16-20 mm in diameter and resonant at about 108 kHz +/- 3 kHz. Here is what happens step-by-step:
- A high-frequency electrical signal is applied to the piezo disc.
- The piezoelectric effect converts that electrical energy into mechanical vibration at ultrasonic frequencies, which are inaudible to humans.
- These vibrations create capillary waves on the surface of the water sitting above the disc.
- When the wave amplitude exceeds the surface tension of water, tiny droplets, usually 1-10 microns in diameter, are ejected upward as a cool, visible mist.
This process is often called ultrasonic atomization. Unlike evaporative or steam humidifiers, no heat or fan is required for the mist itself, making the system extremely quiet and energy-efficient.
Key Physics: The LC Resonant Tank Circuit
Modern driver circuits, including the 4-channel Mist Generator design, do not just feed raw square waves to the piezo. They use an LC resonant tank formed by a 680 uH inductor and the piezo's capacitance, around 3.2 nF:
where:
L = 680 x 10^-6 H, the inductor valueC = piezo capacitance
Each piezo has slight manufacturing variation, which is why tuned frequencies such as 108.0 kHz, 108.4 kHz, 106.3 kHz, and 105.9 kHz can give dramatically better output than a fixed 108 kHz. The low-side MOSFET, UCC27517 gate driver, and TVS protection topology allows precise PWM control and helps protect the components while maximizing peak voltage across the piezo, often around 60-90 Vp-p.
Duty cycle is equally critical. A 25-40% duty cycle is usually optimal. Higher duty cycles, such as 62-76%, can dampen the resonance and reduce mist volume.
Where Ultrasonic Mist Generators Are Used
Ultrasonic mist generators can support controlled humidity in homes, offices, grow rooms, and small indoor plant spaces. Explore Grafito's IoT Controlled Humidifier Mist Generator.
1. Home & Personal Comfort
- Winter heating can dry indoor air to below 30% RH, causing dry skin, irritated sinuses, and static electricity.
- Bedroom use, with ultra-quiet operation, can support sleep comfort, allergy relief, and respiratory comfort.
- Baby nurseries and plant rooms benefit from the cool, visible mist.
2. Industrial & Commercial
- Dust suppression in factories and warehouses.
- Cooling in data centers or food processing spaces.
- Stage effects, spas, and aroma diffusers.
3. Agriculture, Horticulture & Controlled-Environment Growing

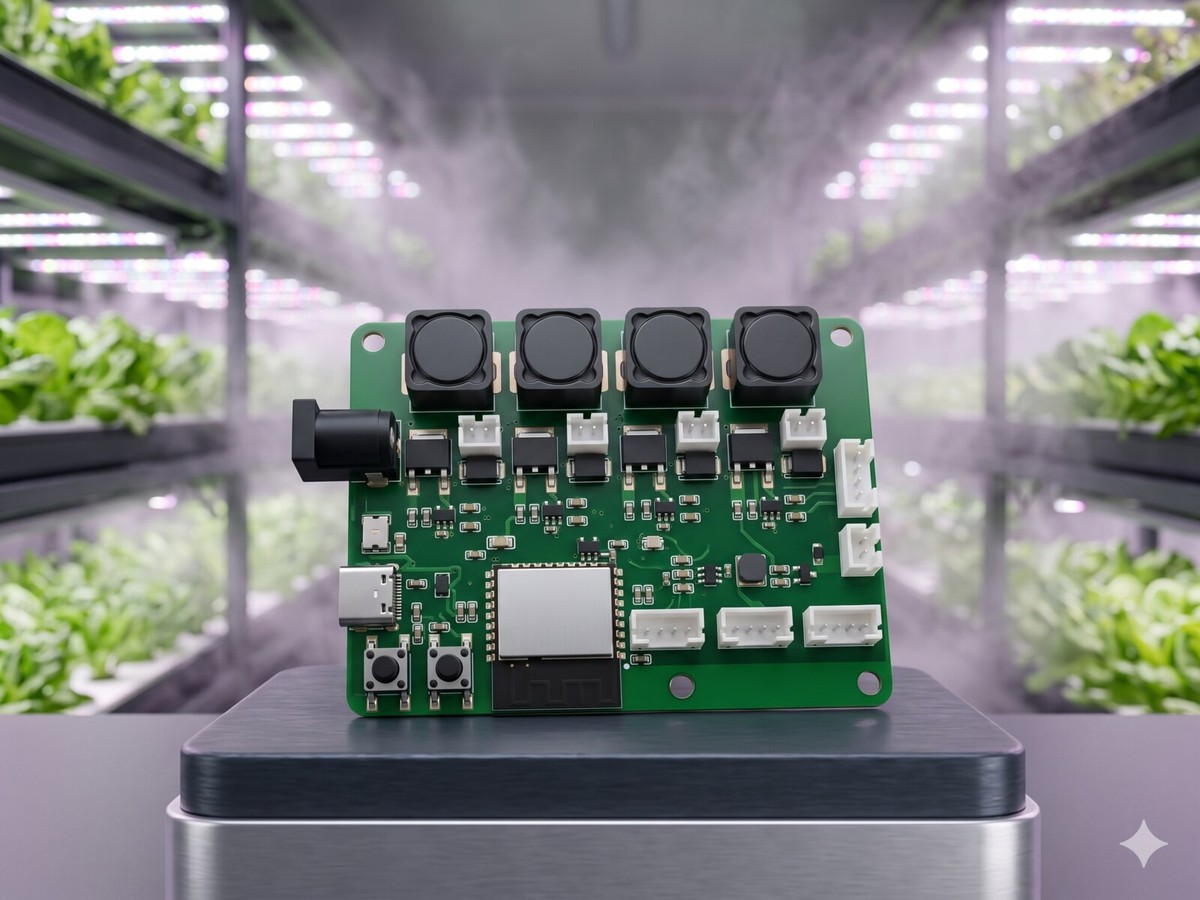

For greenhouses, vertical farms, fogponics, and propagation chambers, zoned mist control helps keep humidity consistent. View the 4-channel IoT mist generator controller.
This is where piezo mist generators shine:

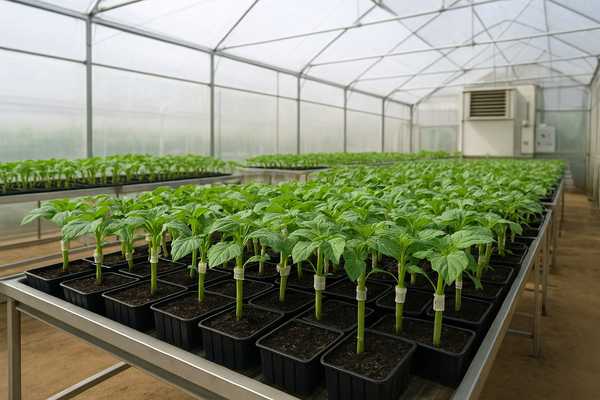

- Greenhouses: Maintain 40-70% relative humidity to reduce plant stress, improve transpiration, and prevent fungal diseases. Ultrasonic systems provide uniform micro-climate control without wetting leaves excessively.
- Hydroponics & vertical farming: Fine mist helps regulate humidity around roots and foliage.
- Fogponics / aeroponics: Roots are suspended in nutrient-rich ultrasonic fog. The ultra-fine droplets, usually 1-10 microns, deliver oxygen and nutrients directly to roots with minimal water use, often resulting in faster growth and higher yields than traditional hydroponics.
- Seedling propagation & cloning: High humidity, around 80-95%, keeps cuttings alive without soil.
- Post-harvest storage: Ultrasonic humidifiers in cold rooms can reduce weight loss, preserve firmness, color, and moisture content when RH is precisely controlled around 80%.
- Mushroom cultivation and orchid houses: These environments rely heavily on consistent high humidity.

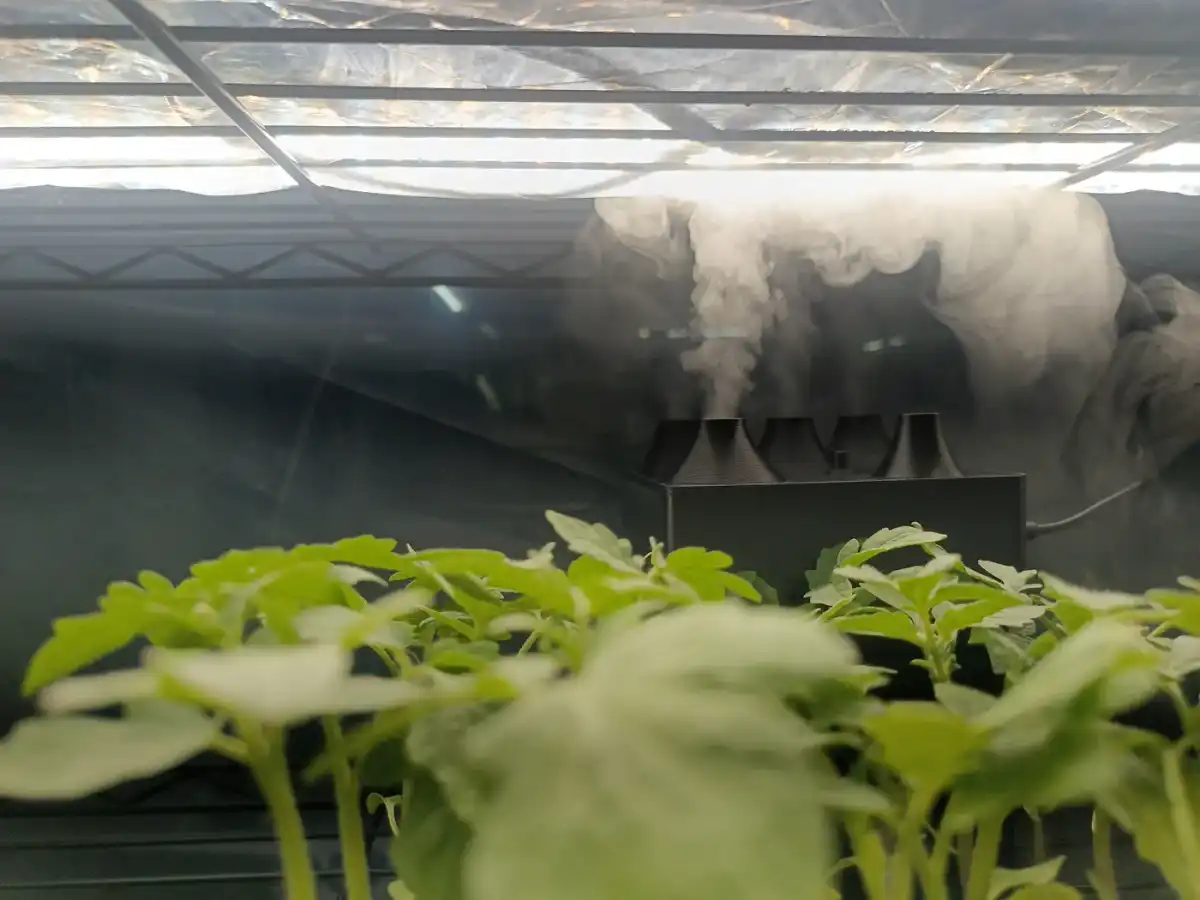

The 4-channel Grafito design is particularly useful here. You can independently control mist intensity and frequency per zone, sync a fan, and integrate CO2 and humidity sensors for fully automatic smart greenhouse behavior.
Key Benefits of Ultrasonic / Piezo Mist Generators
- Energy efficient: No heating element, unlike steam models.
- Ultra-quiet: Ideal for bedrooms or 24/7 greenhouse operation.
- Instant visible mist: Immediate humidity boost.
- Fine droplet size: Better absorption into air with less wetting of surfaces.
- Precise & scalable control: Smart circuits enable per-channel tuning, auto mode, MQTT/Supabase logging, and integration with environmental sensors.
- Low-maintenance hardware: No filters or wicks in basic piezo designs, though regular cleaning is still essential.
- Water-saving: Especially valuable in agriculture and arid regions.
Compared to evaporative humidifiers, ultrasonic units are quieter and more efficient, but they require distilled or reverse-osmosis water for best results.
Critical Considerations & Safety: What You Must Know
Ultrasonic mist generators are effective, but they are not maintenance-free. Misuse can create health risks.
1. Bacterial & Mold Growth
Stagnant water, warmth, and nutrients create a breeding environment for microbes. Neglected tanks can aerosolize bacteria or mold spores directly into the air. This has been linked to humidifier fever and respiratory issues.
Solution:
- Clean thoroughly every 3-7 days using vinegar or hydrogen peroxide.
- Empty and dry the reservoir daily if it is not in continuous use.
2. White Dust & Minerals
Using tap water causes dissolved minerals, such as calcium and magnesium, to be ejected as fine airborne particles. This is the white dust seen on furniture, and it can also enter the breathing zone.
Solution: Always use distilled, demineralized, or reverse-osmosis water for ultrasonic units.
3. Over-Humidification
Too much mist leads to condensation, mold growth on walls and furniture, and plant diseases such as powdery mildew or root rot.
Use sensors and auto mode to keep RH in the safe 40-60% range for most homes, and in the crop-specific range required for agriculture.
4. Not a Replacement for Water
Mist adds humidity to the air. It does not replace proper watering or nutrient delivery to plant roots. In fogponics, mist carries the nutrient solution, but you still need a properly managed nutrient reservoir.
5. Water Level & Piezo Health
Piezo discs must be submerged at the correct depth, usually 3-8 mm above the disc. Running dry damages them quickly.
Why Build or Buy a Smart 4-Channel Piezo Mist Generator Circuit

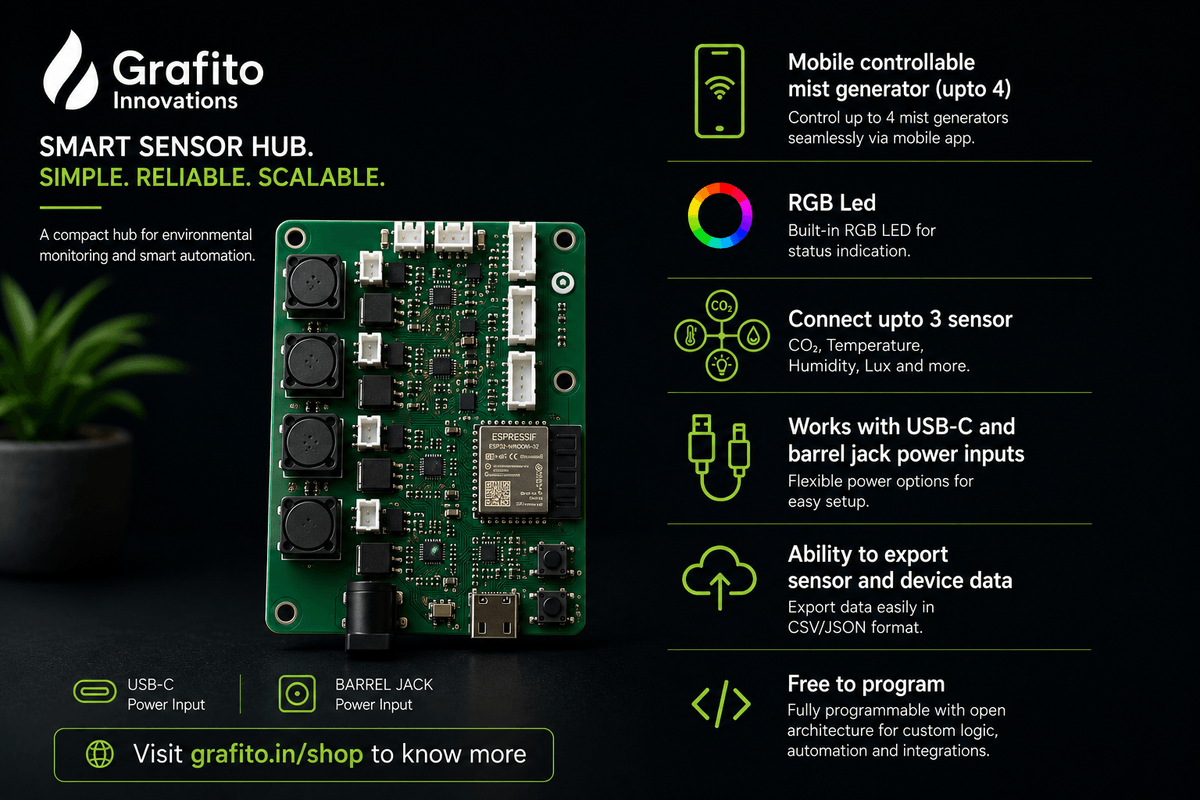

Grafito's smart sensor hub combines up to 4 mist generator channels, sensor inputs, mobile control, and exportable device data. Check variants and pricing.
Cheap off-the-shelf single-channel foggers work, but they lack precision and intelligence. A custom ESP32-C3 design offers:
- 4 independent channels with per-channel frequency tuning, which is critical for maximum mist output.
- Real-time sensor integration using SCD40 CO2, temperature, and humidity sensing, plus VEML7700 lux sensing.
- IoT control via MQTT and cloud logging.
- Auto-mist logic, fan synchronization, and WS2812B status LED support.
- Professional driver topology with UCC27517 gate drivers, 680 uH inductors, and TVS protection to achieve the high peak voltages needed for thick mist.
Whether you are a hobbyist building a propagation chamber, a greenhouse operator needing zoned control, or someone who wants a more capable home humidifier, this level of control turns a simple piezo disc into a powerful, reliable, data-driven system.
Final Thoughts
Ultrasonic piezo mist generators are elegant, efficient, and versatile, from improving bedroom comfort to supporting agricultural humidity control in greenhouses and fogponics systems. When you understand the physics, including resonance, duty cycle, and the LC tank, choose the right water, maintain the unit regularly, and add smart controls, you can unlock their full potential safely and effectively.
Ready to build or upgrade your own professional-grade mist system? The Grafito IoT Controlled Humidifier Mist Generator brings together 4-channel mist control, sensor feedback, scheduling, and remote monitoring in one practical platform.
Explore the IoT Controlled Humidifier Mist Generator and choose your variant
Stay safe, use distilled water, clean regularly, and enjoy the benefits of controlled humidity.
